Synthesis and Crystal Structure of Novel [(u-OCH6) (u-Cl) bis-[(bipy) (Cl)Cu(II)]]Complex

Synthesis and Crystal Structure of Novel [(u-OCH6) (u-Cl) bis-[(bipy) (Cl)Cu(II)]]Complex

Authors

  • Fatima A. Ghalbuoun
  • Ramadan G. Abuhmaiera
  • Fathia A. Treish
  • Wedad A. Alakrash
  • Ramadan Mohamed Elmehdawi university of tripoli - tripoli libya

DOI:

https://doi.org/10.13171/hmjc02309251754elmehdawi

Abstract

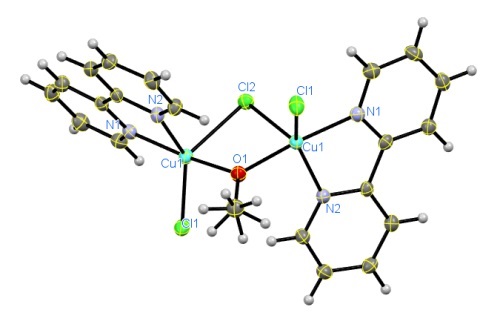

A novel title complex [(µ-chlorido)(µ-methoxido- O)bis-[(2,2´-bipy-k2N,N´)(chlorido) Copper(II)]] crystallizes in the monoclinic space group C2/c with unit cell parameters, a = 14.4775(2)Å, b =11.118(2)Å, c = 13.1617(2)Å, α= 90º, β=92º and γ= 90º,have two very similar distorted square-pyramidal [Cu2(2,2´-bpy)2Cl3(OCH6)] (1) chromophores adopting 4+1 geometrical arrangement. The u-OCH6 and u-Cl bridges occupy a crystallographic inversion center. The novelty of this complex stems from the occupancy site (s.o.f = 0.5) of the unusual six H-atoms of the methoxy bridging group. The bridging Cl-atom occupied the axial site of the distorted square-pyramidal, which is significantly longer than the rest of the other four-basal sites. Due to axial site occupation by Cl-bridging, the two bpy-ligands lie almost perpendicular to each other. The packing structure of the title complex reveals that this structure contains inter-and intra-molecular H-bonds and ꙥ-ꙥ- intermolecular interactions.


Author Biography

Ramadan Mohamed Elmehdawi, university of tripoli - tripoli libya

chemistry department



References

- M. Selvaganapathy, N. Raman, Pharmacological Activity of a Few-Transition Metal Complexes: A Short Review, Journal of Chemical Biology & Therapeutics, 2016, 1, 1000108.

- R. C. Maurya, P. A. Patel, S. Rajpu, Synthesis and characterization of Mixed-ligand complexes of Cu (II), Ni (II), Co (II), Zn (II), Sm (III) and U(VI)O2, with a Schiff Base Derived from the Sulfa Drug Sulfamerazine and 2,2’-Bipyridine” Synthesis and Reactivity, Inorganic and Metal-Organic Chemistry, 2003, 33, 801–816.

- S. Chandraleka, K. Ramya, G. Chandramohan, D. Dhanasekaran, A. Priyadharshini, A. Panneerselvam, Antimicrobial mechanism of Copper (II) 1, 10-phenanthroline and 2, 2′-bipyridyl complexes on bacterial and fungal pathogens, Journal of Saudi Chemical Society, 2014, 18, 953-962.

- G. Ruchi, M. Lallan, Supramolecular and theoretical investigation of Cu (II) complexes containing 2,2-bipyridine and substituted chalcone ligands: Estimation of non-covalent interactions, J. Molecular Structure, 2023, 1273, 134271.

- A. Hazell, Is bipyridine planar in metal complexes, Polyhedron, 2004, 23, 2081–2089

- M. Bakir, S. Paulson, P. Goodson, B. P. Sullivan, Unusual stabilization of trans-2,2-bipyridine ligand in a rhenium(v) phenyl imido complex, Inorg. Chem., 1992, 31, 1127–1129.

- A. Beheshti, K. Nozarian, S. S. Babadi, S. Noorizadeh, H. Motamedi, P. Mayer, G. Bruno, H. A. Rudbari, Structural variability in Cu(I) and Ag(I) coordination polymers with a flexible dithione ligand: Synthesis structure, microbiological and theoretical studies, J. Solid State Chem., 2017, 249, 70-79.

- R. Gautier, A. J. Norquist, K. R. Poeppelmeier, From Racemic to polar materials, Cryst. Growth Des., 2012, 12, 6267–6271.

- M. L. Nisbet, H. Emily, K. R. Popepplmeir, Crystal structures of three Copper (II)–2,2-bipyridine (bpy) compounds, [Cu(bpy)2(H2O)]-[SiF6]4H2O, [Cu(bpy)2(TaF6)2] and [Cu(bpy)3] [TaF6]2 and a related coordination polymer, [Cu(bpy)(H2O)2SnF6]n, Acta Cryst., 2021, 77, 158-164.

- Rigaku Oxford Diffraction, CrysAlisPro program was used for the data collection, unit-cell refinement, and data reduction, The Woodlands, TX, USA, 2021.

- R. C. Clark, J. S. Reid, The analytical calculation of absorption in multifaceted crystals, Acta Cryst., 1995, 51, 887-897

- O. V. Dolomanov, L. J. Bourhis, R. J. Gildea, J. A. K. Howard, H. J. Puschmann, Complete Structure Solution, Refinement, and Analysis Program, App. Cryst., 2009, 42, 339–341.

- G. M. Shedrick, A short history of SHELX, Acta Cryst., 2008, 64, 112–122.

- G. M. Sheldrick, Crystal Structure Refinement with SHELX, Acta Cryst., 2015, 71, 3–8.

- E. Melnic, E. B. Coropceanu, O. V. Kulikova, A. V. Siminel, D. Anderson, H. J. R. Jacquez, A. E. Masunov, M. S. Fonari, V. C. Kravtsov, Robust packing patterns and luminescence quenching in mononuclear [Cu (II) (phen)2] sulfates, J. Phys. Chem. C, 2014, 118, 30087–30100.

- M. L. Nisbet, I. M. Pendleton, G. M. Nolis, K. J. Griffith, J. Schrier, J. Cabana, A. J. Norquist,

K. R. Poeppelmeier, Crystal structure of two Copper (I) -6,6--dimethyl-2,2--bipyridyl. J. Am. Chem. Soc., 2020, 142, 7555–7566.

- Y. Shi, B. B. Toms, N. Dixit, N. Kumari, L. Mishra, J. Goodisman, J. C. Dabrowiak, Cytotoxicity of Cu (II) and Zn (II) 2,2-bipyridyl complexes: Dependence of IC50 on recovery time, Chem. Res. Toxicol., 2010, 23, 1417–1426.

- R. M. El-mehdawi, M. N. El-kaheli, R. G. Abuhmaiera, M. M. Ben Younes. F. A. Treish, A. Bazzicalupi, C. Guerri, Poly[[(u4-benzene-1,3,5-tricarboxylatok4O1:O1:O2:O3) bis(2,2-bipyridine k2 N,N) (u2-hydroxido) dicopper(II)] trihydrate], Acta Cryst., 2014, 70, 270-271.

- G. Christou, S. P. Perlapes, K. Folting, J. C. Huffman, D. N. Hendrickson, A new class of bipyridine-ligated metal carboxylate complexes: characterization of the triply-bridged ferromagnetically coupled complexes [Cu2(OAc)3(bpy)2] (ClO4) and [Cu2(OH) (H2O) (OAc)(bpy)2] (ClO4)2, Chem. Commun., 1990, 746–747.

- C. Janiak, H. Habib, A. Sanchi, Recent advances in crystal engineering, J. Dalton Trans., 2008, 4877–4884.

- T. Tokii, N. Hamamura, N. Nakashima, Y. Muto, Crystal structures and magnetic properties of novel µ-carboxylato-µ-hydroxo-bridged binuclear Copper (II) complexes with 1,10-phenanthroline, Chem. Soc. Jpn., 1992, 65, 1214–1219.

Downloads

Published

25-09-2023

Issue

Vol. 13 No. 3 (2023)

Section

Inorganic Chemistry
