Dealuminated and Desilicated Natural Zeolite as a Catalyst for Hydrocracking of Used Cooking Oil into Biogasoline

Karna Wijaya, Susi Erfina Purba, Wega - Trisunaryanti, Remi Ayu Pratika

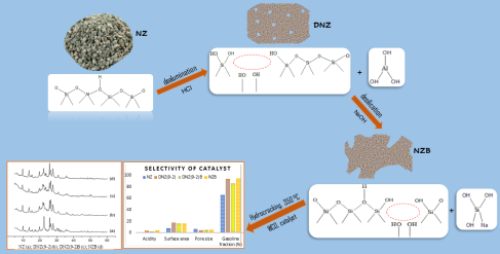

The modification of natural zeolite has been conducted by dealumination and desilication using HCl and NaOH treatments as a catalyst for hydrocracking of used cooking oil into biogasoline. This research aimed to study the effect of dealumination and desilication on the natural zeolite activity and selectivity of a hydrocracking process. A variety of catalysts was prepared by applying 3, 6, and 9 M HCl in the dealumination of natural zeolite to produce DNZ(3-1), DNZ(3-2) DNZ(3-3), DNZ(6-1), DNZ(6-2), DNZ(6-3), DNZ(9-1), DNZ(9-2), and     DNZ(9-3) catalysts and NaOH in the desilication of natural zeolite to obtain NZB catalyst. The results showed that the dealumination and the desilication treatments affected the liquid product conversion of used cooking oil from catalytic hydrocracking. The hydrocracking of used cooking oil with NZB catalyst produced the highest gasoline fuel conversion of 94.87%.



Full Text:



- S. Bezergianni, S. Voutetakis, A. Kalogianni, Catalytic hydrocracking of fresh and used cooking oil, Ind. Eng. Chem. Res., 2009, 48, 8402-8406.

- Z. Zhang, Q. Wang, H. Chen, X. Zhang, Hydroconversion of waste cooking oil into green biofuel over hierarchical USY-supported NiMo catalyst: a comparative study of desilication and dealumination, Catalysts, 2017, 7, 281.

- M. Utami, K. Wijaya, W. Trisunaryanti, Pt-promoted sulfated zirconia as a catalyst for hydrocracking of LDPE plastic waste into liquid fuels, Mater. Chem. Phys., 2018, 213, 548-555.

- G. A. Nasser, T. Kurniawan, T. Tago, I. A. Bakare, T. Taniguchi, Y. Nakasaka, T. Masuda, O. Muraza, Cracking of n-hexane over hierarchical MOR zeolites derived from natural minerals, J. Taiwan Inst. Chem. Eng., 2016, 61, 20-25.

- S. Kadarwati, F. Rahmawati, P. E. Rahayu, K. I. Supardi, Kinetics and mechanism of Ni/Zeolite-catalyzed hydrocracking of palm oil into Biofuel, Indones, J. Chem., 2017, 13, 77-85.

- L. E. Burris, M. C. G. Juenger, the effect of acid treatment on the reactivity of natural zeolites used as supplementary cementitious materials, Cem. Concr. Res., 2015, 79, 185-193.

- M. Silva, A. Lecus, Y. Lin, J. Corrao, tailoring natural zeolites by acid treatments, J. Mater. Sci. Chem. Eng., 2009, 7, 26-37.

- D. D. Anggoro, H. Oktavianty, S. B. Sasongko, L. Buchori, Effect of dealumination on the acidity of zeolite Y and the yield of glycerol monostearate (GMS), Chemosphere, 2020, 257, 127012.

- X. Chen, W. V. Srubar, Sulfuric acid improves the reactivity of zeolites via dealumination, Constr. Build Maters., 2020, 264, 120648.

- D. V. Peron, V. L. Zholobenko, J. H. S. Melo, M. Capron, N. Nuns, M. O. Souza, L. A. Feris, N. R. Marcilio, V. V. Ordomsky, A. Y. Khodakov, External surface phenomena in dealumination and desilication of a large single crystal of ZSM-5 zeolite synthesized from a sustainable source, Microporous and Mesoporous Mater., 2019, 286, 57-64.

- Y. Wu, F. Tian, J. Liu, D. Song, C. Jia, Y. Chen, Enhanced catalytic isomerization of α-pinene over mesoporous zeolite beta of low Si/Al ratio by NaOH treatment, Microporous Mesoporous Mater., 2017, 162, 168-174.

- J. C. Groen, T. Sano, J. A. Moulijn, J. Pérez-Ramírez, Alkaline-mediated mesoporous mordenite zeolites for acid-catalyzed conversions, J. Catal., 2007, 251, 21-27.

- M. H. M. Ahmed, O. Muraza, M. Yoshioka, T. Yokoi, Effect of multi-step desilication and dealumination treatments on the performance of hierarchical EU-1 zeolite for converting methanol to olefins, Microporous Mesoporous Mater., 2017, 241, 79-88.

- K. Góra-Marek, K. Tarach, J. Tekla, Z. Olejniczak, P. Kus̈trowski, L. Liu, J. Martinez-Triguero, F. Rey, Hierarchical mordenite dedicated to the fluid catalytic cracking process: Catalytic performance regarding textural and acidic properties, J. Phys. Chem. C., 2014, 118, 28043–28054.

- S. Ardizzone, C. L. Bianchi, G. Cappelletti, F. Porta, Liquid-Phase catalytic activity of sulfated zirconia from sol-gel precursors: The role of the surface feature, J. Catal., 2004, 227, 470-478.

- J. V. Milato, R. J. Franca, A. S. Rocha, M. R. C. M. Calderari, Catalytic co-pyrolysis of oil sludge with HDPE to obtain paraffinic products over HUSY zeolites prepared by dealumination and desilication, J. Anal. Appl. Pyrolysis., 2020, 151, 104928.

- M. S. Ore, K. Wijaya, W. Trisunaryanti, W. D. Saputri, E. Heraldy, M. W. Yuwana, P. L. Hariani, A. Budiman, S. Sudiono, The synthesis of SO4/ZrO2 and Zr/CaO catalysts via hydrothermal treatment and their application for conversion of low-grade coconut oil into biodiesel, J. Environ. Chem. Eng., 2020, 8, 104205.

- P. P. Dik, G. G. Danilova, M. O. Kazakov, K. A. Nadiena, V. Budukva, P. Yu, O. V. Klimov, P. P. Prosvirin, E. Y. Gerasimov, T. O. Bok, E. E. Dobryakova, E. E. Knyazeva, I. I. Ivanova, A. S. Noskov, Hydrocracking of vacuum gas oil over NiMo/zeolite-Al2O3: Influence of zeolite properties, Fuel, 2019, 237.

- N. Viswanadham, M. Kumar, Effect of dealumination severity on the pore size distribution of mordenite, Microporous Mesoporous Mater., 2006, 92, 31-37.

- Z. Qin, W. Shen, S. Zhou, Y. Shen, C. Li, P. Zeng, B. Shen, Defect-assisted mesopore formation during Y zeolite dealumination: The types of defect matter, Microporous and Mesoporous Mater., 2020, 303, 110248.

- C. T. Tye, Catalysts for hydroprocessing of heavy oils and petroleum residues, Intechopen, 2019. doi: 10.5772/intechopen.89451.

- W. Sriningsih, M. G. Saerodji, W. Trisunaryanti, Triyono, R. Armunanto, I. I. Falah, Fuel production from LDPE plastic waste over natural zeolite supported Ni, Ni-Mo, Co and Co-Mo metals, Procedia Environ. Sci., 2014, 20, 215-224.

- Q. Cui, S. Wang, Q. Wei, L. Mu, G. Yu, T. Zhang, Y. Zhou, Synthesis and characterization of Zr incorporated small crystal size Y zeolite supported NiW catalysts for hydrocracking of vacuum gas oil, Fuel, 2019, 237, 597-605.
