Crystal structure of oxonium o-toluidinium sulfate at 100K, (C7H10N)(H3O)SO4

Chaouki Ben hassen, Mohamed Boujelbene, Mohamed Khitouni, Joan Josep Suñol, Tahar Mhiri

Abstract

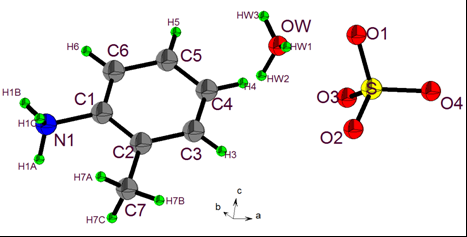

A simple oxonium o-toluidinium sulfate, (C7H10N)(H3O)SO4 , crystallized from water at ambient temperature was found to be monoclinic (space group P21/c) at 100K. In the crystal, the H3O+ ions and the SO42- anions are linked by O-H…O hydrogen bonds, generating infinite layers lying parallel to the bc plane at x = 1/2. These layers are interconnected by the organic cations, which establish N-H…O hydrogen bonds with the SO42- anions. Weak π-π stacking interactions between the benzene rings of neighboring molecules further to stabilize the structure [centroid- centroid distance = 3.648 Å].

Full Text:

PDF

References


-T. Guerfel, A. Jouini, J. Inorg. Chim., 2011, 1, 47-53.

-P.T. Muthiah, B. Umadevi, N. Stanley, X. Shuib, D. S. Eggleston, J. ActaCryst., 2001, E57, 1179–1182.

-X. –G. Meng, F. -S. Mei, Z. –R. Liao, J. Acta Cryst., 2005, E61, 3047–3049.

-M. N. Tahir, C. Muir, M. Danish, M. I. Tariq, D. Ulku, J. ActaCryst., 2009, E65, 785–787.

-A. D. Fortes, I. G. Wood, K. S. Knight, J. Chem. Phys., 2006, 125, 144510- 144522.

-A. D. Fortes, I. G. Wood, L. VoÄadlo, L. Chapon, K. S. Knight, R. I. Smith, J. Chem. Phys., 2008, 128, 054506- 054518.

-E. Kemnitz, C. Werner, S. Trojanov, J. ActaCryst.,1996, C52, 2665–2688.

-H. Marouani, M. Rzaigui and S.S..Al-Deyab, J. ActaCryst., 2010, E66, 702–704

-G. M. Sheldrick, SHELXS-97, Programs for Crystal Solution, University of Göttingen, Germany, 1997.

-G.M. Sheldrick, SHELXL-97, Programs for Crystal Structure Refinement, University of Göttingen, Germany, 1997.

-R. H. Blessing, J. Acta Cryst.,1986, B42, 613–621.

-I. D. Brown,J. ActaCryst., 1976, A32, 24–31.

-L.Chertanova, C. Pascard, J. Acta Cryst.,1996, B52, 677-684.

-W. Baur, W. J. Acta Crystallogr.,1974, B 30, 1195-1215.

-N. Benali-Cherif, H. Boussekine, Z. Boutobba, A. Kateb, J. ActaCryst.,2007, E63, 3287-3289.

-K. Kaabi, C. Ben Nasr, M. Rzaigui, J. Phy and Chem of Solids, 2004, 65, 1759-1764.

-C. Janiak, J. Dalton Trans, 2000, 3885-3896.

-G. J. Reiss, J. S. Engel, J. ActaCryst., 2004, E60, 985–987




DOI: http://dx.doi.org/10.13171/mjc.2.6.2014.03.03.22
